CoxBox Core System

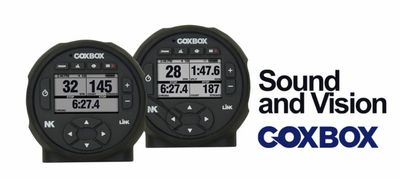

Sound + Vision

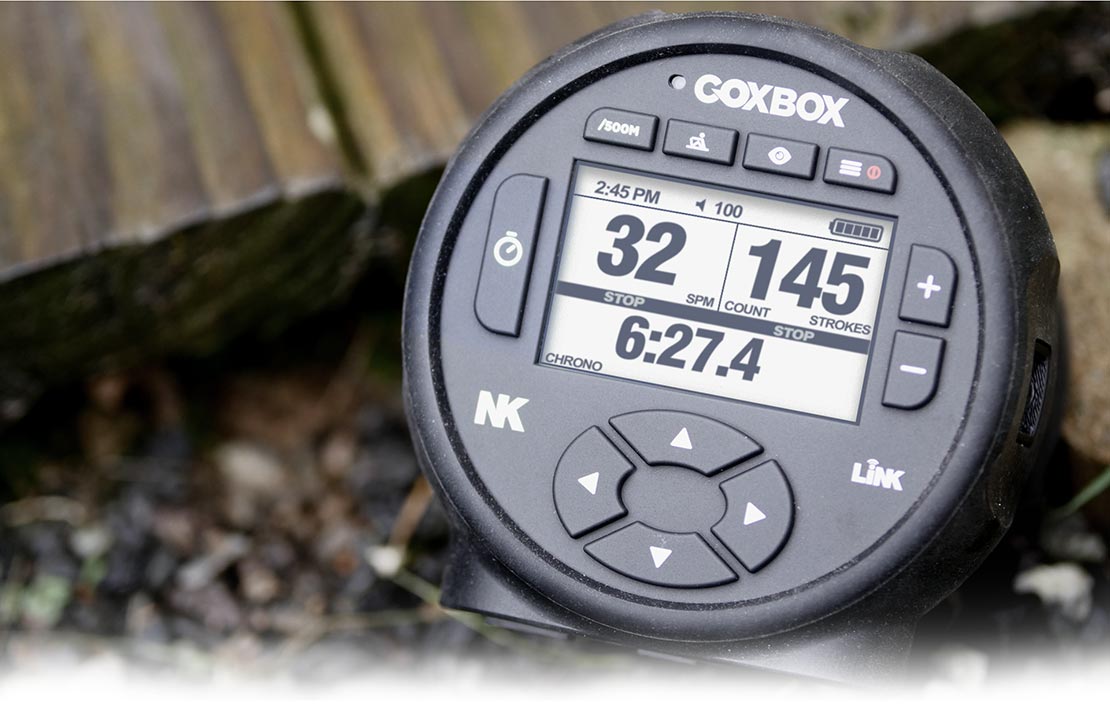

CoxBox Core
Completely redesigned, CoxBox Core retains the main functions that coxswains have come to rely on, and surrounds them in a more powerful, efficient, streamlined form.
The CoxBox Core features a host of innovations including:
EASY TO READ DISPLAY
A single-piece faceplate and large, easy to read display provide a more rugged and waterproof design.
WATERPROOF INTERFACE
Buttons are precisely located and sealed from the elements, reducing the potential for water to enter the unit. The lower profile design takes up less volume.
LONGER BATTERY LIFE
New cylindrical battery design provides 10+ hours of battery life with a more reliable, sustained charge.
WIRELESS STROKE RATE
No more dealing with sensors or magnets.
MONOBLOCK™
Monoblock™ connector port relocates microphone, speaker/charging and data ports away from the face of the unit, creating better readability and simplified serviceability.
STABLESOCKET™
Stablesocket™ design prevents rotation and bending of plug inserts, which protects pins and sockets from damage.
CoxBox GPS + NK LiNK Logbook
A Better Way to Store and Analyze Your Workouts
CoxBox GPS is designed to interface with NK LiNK Logbook, our new cloud-based workout analysis platform. Using the free App on your mobile device, you can upload workouts to a free, private account and then use the tools provided to store and analyze workout sessions.
Coming in early 2019, you will be able to use CoxBox GPS with NK Link Logbook's Team accounts, which offer wireless streaming to the cloud, privacy settings for anonymous workouts, and simultaneous data comparison between boats (or even seats!). Visit NK LiNK Logbook for more information.
|
CoxBox GPS
|
CoxBox Core
|
CoxBox
|
Display Type
|
High contrast, sunlight readable monochrome liquid crystal display with 400 x 240 resolution and large, clear numerals.
|
High contrast, sunlight readable monochrome liquid crystal display with 400 x 240 resolution and large, clear numerals.
|
High contrast monochrome LCD
|
Display Size
|
3.6" x 2.6" x 1.2"
(92 x 67 x 31 mm)
|
3.6" x 2.6" x 1.2"
(92 x 67 x 31 mm)
|
2.75" x 1.5"
|
Battery Life
|
10+ hours
|
10+ hours
|
4 hours
|
Charging Time
|
Standard Charger: 12 hrs.
Espresso Charger™: 4 hrs.
|
Standard Charger: 12 hrs.
Espresso Charger™: 4 hrs.
|
Overnight
|
Performance Tracking Measures
|
Audio
Wireless Stroke Rate
Elapsed Time
Speed (GPS)
Memory
Cumulative Splits
Date
Distance per Stroke
Instantaneous Split Speed
|
Audio
Wireless Stroke Rate
Elapsed Time
|
Audio
Stroke Rate
Elapsed Time
Memory
|
Dimensions
|
3.20" tall x 4.4" diameter
|
3.20" tall x 4.4" diameter
|
4" tall x 4.5" diameter
|
Weight
|
1lb 6.1 oz
|
1lb 6.1 oz
|
1lb 5.2 oz
|
Waterproof
|
Waterproof (IP67, NEMA-6)
|
Waterproof (IP67, NEMA-6)
|
Waterproof (IP67, NEMA-6)
|
Buoyancy
|
Floats
|
Floats
|
Floats
|
Real-time LiNK Streaming to Cloud (BLE)
|
|
×
|
×
|
Connects to EmPower Oarlock(s)
|
|
×
|
×
|
Connects to Integrated Smart Impeller Pod
(Coming Soon)
|
|
×
|
×
|
Connects to Smart Seat Display
(Coming Soon)
|
|
×
|
×
|
Connect to Smart Integrated Lighting System
(Coming Soon)
|
|
|
×
|
Connects to Espresso Charger™ Rapid Charging Module
(Coming Soon)
|
|
|
×
|
Warranty Period
|
Two Year
|
Two Year
|
Two Year
|
|
